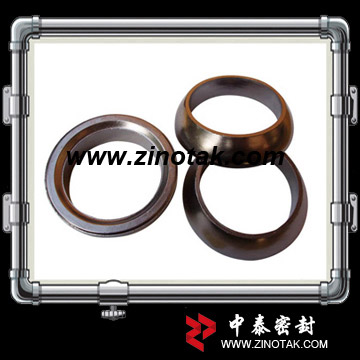

Exhaust Gasket Reinforced Inner Wire Mesh (ZT-G102)

- The gasket is made of expanded graphite tape and reinforced 201ss/ 304ss wire mesh and wire net
- Good penetrating and low Differential pressure
- strong corrosion resistance,durable
- long time using

Exhaust Gasket Reinforced Inner Wire Mesh is formed by molding flexible graphite tape or flexible graphite braided packing, and
 201ss /304ss wire mesh/wire net . It is mainly
used for automotive exhaust system.

Typical Types
ZT-G101: Exhaust Joint Gasket
ZT-G102: Exhaust Gasket Reinforced Inner Wire Mesh
ZT-G103: Exhaust Gasket Reinforced Outer Wire Mesh
ZT-G104: Exhaust Gasket Wire Coating PTFE
ZT-G105:Full Wire Mesh Gasket

Typical Applications:
Gaskets for exhaust system


Parameter of Graphite:

Item

Standard Data

Test Result

Content of Graphite

99.2%

Tensile Strength

≥ 4.0mpa

4.52mpa

Tolerance of Density

≤+/-0.07g/cm3

0.983g/cm3

Compressbility

35%~55%

42.5%

Recovery

≥9%

9.96%

Ash

≤ 1.0%

0.49%

Ignition Loss(450ºC)

≤ 1.0%

0.65%

Sulphur Centent

≤ 1200ppm

1170ppm

Tolerance of Thickness

≤ +/- x 7%

+0.019
