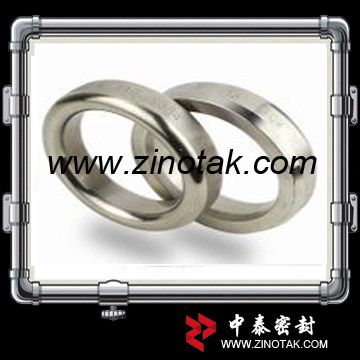

Octagonal Ring Joint Gasket (ZT-G802)
- Ring Joint Gaskets are for oilfield and process industry duties.
- Octagonal shape gasket is belong to API 6A R series
- These gaskets are used in pressures up to 10,000 PSI, more than Oval ring joint.
- The octagonal type is the only gasket that will fit a bottom radiused groove.
-Gaskets and not re-used after to rque.

Description
The ring type joint was initially developed for high pressure and temperature applications found in the petroleum
industry and is primarily used in the oil field on drilling and completion equipments. However, today this product
range can also be found on valves and pipework assemblies, along with some high integrity pressure vessel joints.

Tolerances (Inches)
- "A" Width of ring: +/-0.008
- "B" "H" Height of ring: +/-0.020
- "P" Average pitch diameter of ring: +/-0.007
- "23o" Angle: +/- 1/2o

Standard
Standard style R ring type joints are manufactured in accordance with both API 6A and ASME B16.20 size and ratings.
Available in both oval and octagonal configurations, both types are interchangeable on the modern octagonal type
grooved flanges. As with all metal ring type joints including style R, it is recommended to replace the ring when
flange connection is broken.
Back: Oval Ring Joint Gasket (ZT-G801)
Next: RX Ring Joint Gasket (ZT-G803)
