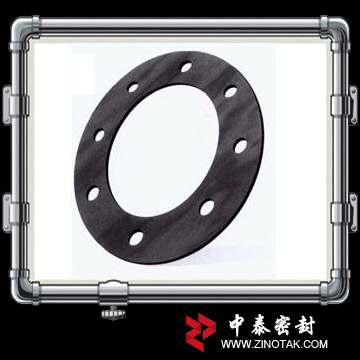

Non-asbestos Rubber Gasket (ZT-S303G)

- Non-asbetos rubber sheet are cut from non-asbestos rubber sheets
- Suitable for use are an oil-resistanting non-asbestos rubber sheet medium for heat installations and engine sealing

Description
The non-asbestos gasket is cut from non-asbestos rubber sheets.
The non-asbestos sheet is made from asbestos fiber, Nitrile rubber, filling material and dye,
compressed and calendered under high temperature and pressure into a sheet form.Normal
colour: Black, blue or green, yellow .etc.

Specification
:

Item Unit Value
Item No.   ZT-S303G
-150
ZT-S303G
-150W
ZT-S303G
-200
ZT-S303G
-250
ZT-S303G
-300
ZT-S303G
-350
Identification color/overprint / Yellow/black gray/black green/black blue/black black/black black/black
Density g/cm3 1.75-1.85 1.70-1.90 1.70-1.80 1.70±0.1 1.50~1.70

1.50~1.70

Tensile strength ASTMF-152 Mpa ≥5.0 ≥4.5 ≥6.0 ≥7.0 ≥7.0 ≥7.0
Compressibility ASTMF-36 % 7~17 7~17 7~17 7~17 7~17 7~17
Resilience ASTMF-36 % ≥35 ≥30 ≥40 ≥40 ≥45 ≥45
Compressive creep strength N/mm2 ≤30 ≤30 ≤30 ≤30 ≤30 ≤30
Leakage rate ASTMF-37

cm3/s

1.5x10-3 1.5x10-3 1.5x10-3 1.5x10-3 1.0x10-3 1.0x10-3
Oil resistance
/ Thickness growth
ASTM1#oil % ≤10 ≤12 ≤10 ≤10 ≤10 ≤10
ASTM3# oil % ≤15 ≤18 ≤15 ≤15 ≤15 ≤15
Temperature ℃(℉) 100~120
(212~248)
100~150
(212~302)
150~180
(302~356)
200
(392)
200~250
(392~482)
250~300
(482~572)
Size 1500x1500mm, 1500x4000mm,1500x4500mm

Thickness

0.4~5.0mm


Styles

NCAF Gasket S303G: cut from non-asbestos rubber sheets.
Temperature: 150oC, 200oC, 250oC, 300oC, 350oC, 400oC, 450oC.
Oil Resistant NCAF Gasket S304G: cut from Oil resistant non-asbestos rubber sheets.
Temperature : 150oC, 200oC, 250oC, 300oC, 350oC, 400oC, 450oC.
CAF Gasket S203G: cut from asbestos rubber sheets.
Temperature: 150oC, 200oC, 250oC, 300oC, 350oC, 400oC, 450oC.
Oil Resistant CAF Gasket S204G: cut from Oil resistant asbestos rubber sheets.
Temperature: 150oC, 200oC, 250oC, 300oC, 350oC, 400oC, 450oC.

Typical Applications

For static sealing in flange joint of pipeline, valve, shipping industry, oil, etc.

Standard

ASME, JIS, JPI, ASNI, DIN, etc. Or manufactured gasket accordance customers requirements.
More informations, please click the "PDF" download or contact with us.
