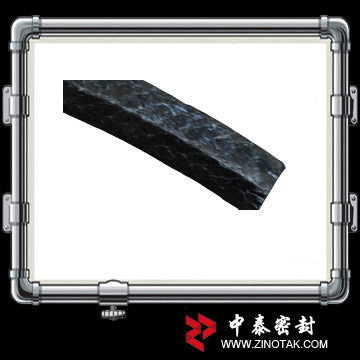

Graphite Packing With PTFE Impregnated (ZT-P102)

Graphiite packing is refined from expanded graphite steeped with PTFE mixtures and insert lubricant.It has the
following advantages: corrosion resistance, high-heat conduction, repid heat dissipation and self-lubrication.

Application Equipment
Extensive use for piston, impeller pumps, flange etc.

Application Industry
Fossil oil, chemical industry, power plant, steel mill ,ect.

Application Medium:
Acid, alkali, oils, steams and solvents etc/

The Product Specification:
3x3mm—50x50mm; others can be produced according to client’s requirement

Technical Parameters:
Pressure:
Rotary pump: 25bar; reciprocating pump: 100bar; valve:300bar
Working temperature: -240c ~ +260c
Velocity: 20m/s
PH:0-14
