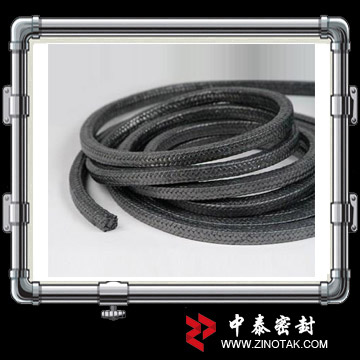

Carbonized packing with graphite is a braided packing made of imported carbon fiber. Impregnating graphite powerer.
PTFE dispersion or special lubricant. It has the following advantages: heat resistance,good conductivity, stable
chemical abilities, abrasion resistant and excellent sealing.

Application Equipment
Centrifugal pump, mixer, agitator, stern tube, etc.

Application Industry
Chemical industry- for aggressive media pumping power industry- for sealing of high-temperature pumps feeding the
boilers petrochemical industry- resistance to oils and hydrocarbons.

Application Medium:
Corrosive fluids except strong exidizer acids, organic solvents. And fluids where contamination is not permissible.

The Product Specification:
3x3mm—50x50mm; others can be produced according to client’s requirement

Technical Parameters:
Pressure: 2-25mpa
Working temperature: -200c ~ +600c
Velocity: 0-25m/s
PH:0-14
