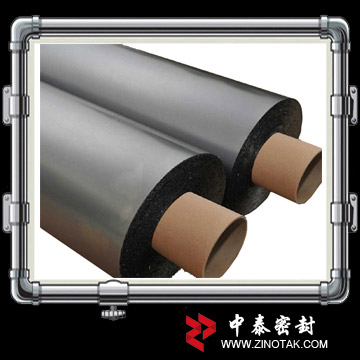

Flexible Graphite Sheet (ZT-S100)

Flexible graphite sheet and rolls is made from high purity graphite, it is used can be expanded graphite particles
formed by the high temperature expansion of repression, it retains the high temperature crystalline flake graphite,
corrosion resistant, self lubricating, etc.

Description:
It is selected from the high purity natural flake graphite. They are made through the advanced chemical treatment
and mechanical procedure without fibers, binders or other additives.It offer excellent sealing capabilities under
extreme conditions with a longer life and less maintenance.Nuclear Style grade:ZT-S100V

Application:

Made for packing rings and various kinds of gaskets.
Cut into strip for filler of spiral wound gasket.
Used widely in chemical, automotive and pump, valve industries. As a superior replacement for asbestos, new more
applications are Being identified daily.

Temperature:
-240~500°C under oxidizing environment
                          -240~13500°C under non-oxidizing environment

PH Range:
0 - 14

Parameter:

Item

Nuclear

grade

Industrial grade

Tolerance of Density g/cm3

±0.05

±0.06

Carbon Content ≥%

99.5

98/99

Tensile strength ≥Mpa

5

4

Compressibility ≥%

30

30

Recovery ≥%

15

15

Sulphur Content ≤%

700

1200

Chlorine Content ≤%

25

50

Stress relaxation rate %

10

10

Lgnition loss ≤%

0.5

2.0


Dimensions:

Item

Sheets

Rolls

Density g/cm3

1.0

1.0

Length

1000, 1500mm

30~100m

Width mm

5~1000, 1500

3~1000~1500

Thickness mm

0.5~3

0.2~1.1

Special density, thickness, shape or grade available on request.
