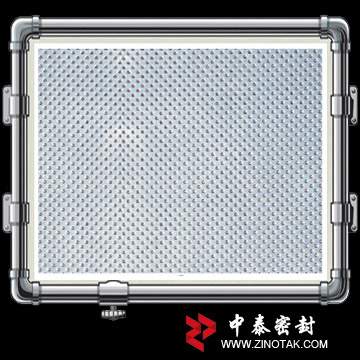

Reinforced Graphite Sheet With Double Faced Metal (ZT-S102)

Reinforced graphite sheet with double faced metal is made from ZT-S100 Flexible graphite sheet
through specially pressing or sticking process. The double faced materials can be tinplate, CS,SS304, SS316,
Nickel, etc. It used in kinds of conditions, and various gaskets.

Description
- Made for various gaskets
- Suitable for petrochemical, mining, vessels, boilers, piping and duct, pumps and valves, flanges

Prime Features

- Lone life and less maintenance
- Replacement for asbestos, new more applications are being indentified daily.
- Excellent comprehensive properties
- Good compressibility and resilience, small stress relaxation, fine compensation function
- Permanently elastic, even in hot-cold cycles over the entire temperature range, no aging,
no brittleness, no hot or cold flow.

Technical Data

Item

Industrial grade

Unclear grade

Tolerance of density g/cm3

+/-0.06

+/-0.05

Dnsity g/cm3 0.7-1.1 0.7-1.1

Carbon content >/= %

98/99

99.5

Tensile strength >/= Mpa

3~20

5~25

Compressibility >/= %

30

30

Recovery >=/ %

15

15

Sulphur content </= %

1200

700

Chlorine content </= %

50

25

Stress relaxation rate %

10

10

Lgnition loss </= %

2.0

0.5


Temperature: -240~+550°C under oxidizing environment
                          -240~+3500°C under non-oxidizing environment
PH: 0~14

Dimensions

Item

Sheets

Length mm

500, 1000, 1500

Width mm

1000, 1500, 2000

Thickness mm

1.0~3.0

Special density and thickness, shape or grade available on request
