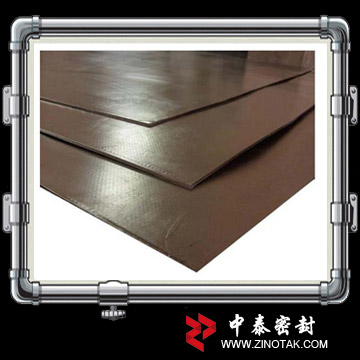

Reinforced Graphite Sheet With Metal Mesh (ZT-S104)

Reinforced graphite sheet with metal mesh is made from ZT-S100 Flexible graphite sheet through
specially pressing or sticking process. The insert materials can be iron,SS304, SS316, Nickel, etc.
It used in kinds of conditions, and various gaskets.

Typical Application
- Suitable for making gaskets of cylinders for are compressors, internal combustion engines and
packing for different kinds of piping, and flanges
- The condition of high pressure and high temperature
- Lone life and less maintenance
- Replacement for asbestos, new more applications are being indentified daily.
- Excellent comprehensive properties
- Good compressibility and resilience, small stress relaxation, fine compensation function
- Permanently elastic, even in hot-cold cycles over the entire temperature range, no aging,
no brittleness, no hot or cold flow.

Technical Data of Graphite Sheet

Item

Industrial grade

Unclear grade

Tolerance of density g/cm3

+/-0.06

+/-0.05

 Density g/cm3 0.7-1.1  0.7-1.1

Carbon content >/= %

98/99

99.5

Tensile strength >/= Mpa

3~20

5~25

Compressibility >/= %

30

30

Recovery >=/ %

15

15

Sulphur content </= %

1200

700

Chlorine content </= %

50

25

Stress relaxation rate %

10

10

Lgnition loss </= %

2.0

0.5

Temperature: -240~+550°C under oxidizing environment
                         -240~+3500°C under non-oxidizing environment
PH: 0~14

Dimensions

Item

Sheets

Length mm

500, 1000, 1500

Width mm

1000, 1500, 2000

Thickness mm

1.0~3.0

Special density and thickness, shape or grade available on request
