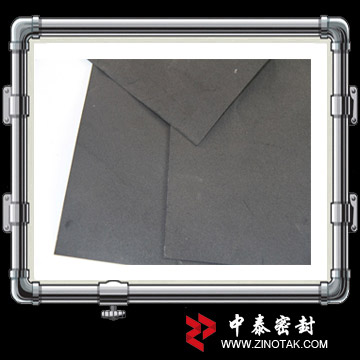

Asbestos Beater Sheet (ZT-S200)
It is made from synthetic emulsion, asbestos fiber and filling material. Normal used for automobile, agricultural
machinery, motorcycle, engineering machinery etc., suitable for lubricating oil under temperature 200℃

Constaruction:
ZT-S200V Vulcanized Asbestos beat sheet
It has smooth face and high density compared with Style ZT-S200

Application & Parameter:
Gasket materials for explosion engine cylinder gaskets and chemical gaskets
Suitable to sealing lubricating oil at highest temperature 200℃
ZT-S200 Asbestos strip is normal for filler of spiral wound gasket.

Item

Style

ZT-S200

ZT-S200V

Density g/cm3

0.9~1.1

1.2~1.4

Tensile strength ≥Mpa

2.5

5

Compressibility ≥%

40±7

20±5

Recovery ≥%

20

40

Stress relaxation ≤%

30

30

In 20# aviation oil,

150℃, 30min

Oil absorption

≤50%

≤30%

Thick. increase

≤6%

≤12%

In water

15~30℃, 5h

Thick. increase

≤6%

≤12%

Normal color: Grey, Black, White, other color on request
or graphite coating :ZT-S200G, ZT-S200VG

Tolerance:

Item

Tolerance

In same sheet

Thickness

±mm

mm

0.5

0.05

0.06

0.6-0.8

0.06

0.08

1-2

0.08

0.08


Dimensions:
Width: 500mm; 1000mm
Length: 500mm; 1000mm; 1200; 1500mm
Thickness: 0.3~2.0mm
