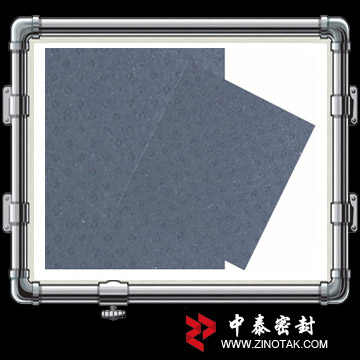

ZT-S201is made of asbestos beater sheet reinforced with tanged 0.18-0.25mm Carbon Steel/Tinplate or 0.1-0.15mm 304ss /316ss. It is extensively applied in manufacturing various motor gaskets. It is a new material that will substitute asbestos products. The product has
excellent performance in dilatability, sealing equality and long life etc., Mainly applied in automobile farming
machine, motorcycle and engineering etc., it is also can be used in high strength gaskets and cylinder gaskets etc.
Parameter:
|
Item |
Style |
|
ZT-S201 |
|
Density g/cm3 |
2.30 |
|
Tensile strength ≥Mpa |
12.7 |
|
Compressibility ≥% |
10±5 |
|
Recovery ≥% |
40 |
|
Sealing performance |
<0.5cm3/min |
|
Performance of heat-resistance |
150-300°C |
Normal colour: Black, Gray, Graphite etc.
Available with SS304. wire mesh insertion
Also available with anti-stick silicon resin or graphite coating
Dimensions:
500×1000mm; 500×1200mm; 500×1500mm;
510×1016mm; 510×1530mm;
1000×1000mm; 1000×1500mm;
Thickness:1.0~3.0mm
