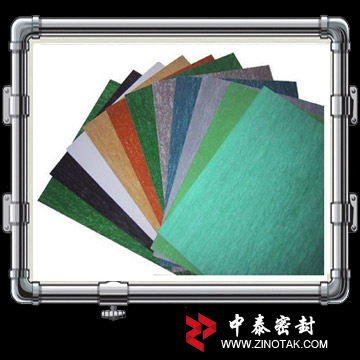

Non-asbestos Rubber Sheet (ZT-S303)

It’s also named aramid fibre,non-asbestos sheet,jointing sheet,non-asbestos sealing sheet,gasket sheet,non-asbestos rubber sheet,jointing sheet,sealing material, non-asbestos gasket material,caf
jointing sheet,compressed asbestos joint sheet,Non-asbestos joint sheet .

Specification:

Item

Unit

Value
Item No.   ZT-S303
-150
ZT-S303
-150W
ZT-S303
-200
ZT-S303
-250
ZT-S303
-300
ZT-S303
-350
Identification color/overprint / Yellow/black gray/black green/black blue/black black/black black/black
Density g/cm3 1.75-1.85 1.70-1.90 1.70-1.80 1.70±0.1 1.50~1.70 1.50~1.70
Tensile strength ASTMF-152 Mpa ≥5.0 ≥4.5 ≥6.0 ≥7.0 ≥7.0 ≥7.0
Compressibility ASTMF-36 % 7~17 7~17 7~17 7~17 7~17 7~17
Resilience ASTMF-36 % ≥35 ≥30 ≥40 ≥40 ≥45 ≥45
Compressive creep strength N/mm2 ≤30 ≤30 ≤30 ≤30 ≤30 ≤30
Leakage rate ASTMF-37 cm3/s 1.5x10-3 1.5x10-2 1.5x10-3 1.5x10-3 1.0x10-3 1.0x10-3
Oil resistance
/ Thickness growth
ASTM1#oil % ≤10 ≤12 ≤10 ≤10 ≤10 ≤10
ASTM3# oil % ≤15 ≤18 ≤15 ≤15 ≤15 ≤15
Temperature ℃(℉) 100~120
(212~248)
100~150
(212~302)
150~180
(302~356)
200
(392)
200~250
(392~482)
250~300
(482~572)
Size 1500x1500mm, 1500x4000mm,1500x4500mm
Thickness 0.4~5.0mm


Description:
Non-Asbestos Rubber Sheet is made of excellent nonasbestos, rubber and other chemical
materials formed by rolling after special mix-ture treatment .the sizes not larger than 0.5~6.0mm
can be supplied.it is mainly for such media as water and vapor and applicable to sealing and
heat-insulation used in the industries as machinery, automobiles, farm, machinery and petroleum.


Style:
- Non-Asbestos Rubber Sheet
- Non-Asbestos Rubber Sheet with Steel Wire Net Strengthening(coated with graphite)
- Oil-ResistanceNon Asbestos Rubber Sheet
- Acid-Resistance Non Asbestos Rubber Sheet:
- PureNon- Asbestos Sheet
- Reinforced Graphite Composite Sheet.
- Reinforced Non-Asbestos Composite Sheet or non-asbestos free.
