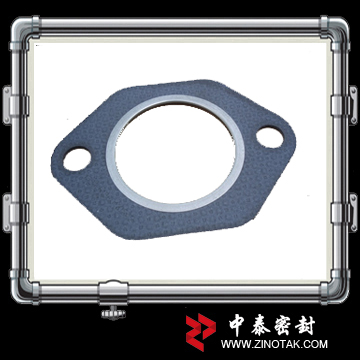

Muffler Gaskets

ZT-S201G is cut from ZT-S201. It is suitable to kinds of the muffler gasket and cylinder heads gasket
The product has excellent performance in dilatability, sealing equality and long life etc., Mainly applied
in automobile farming machine, motorcycle and engineering etc., it is also can be used in high strength
gaskets and cylinder gaskets etc.

Parameter:

I Item

Style

Reinforced Asbestos Sheet With Tanged Metal

ZT-S201

Density g/cm3

1.30~1.50

Tensile strength Mpa

12.7

Compressibility %

10±5

Recovery %

40

Sealing performance

<0.5cm3/min

Performance of heat-resistance

150-300°C

Normal colour: Black, Gray, Graphite etc.
Available with SS304. wire mesh insertion
Also available with anti-stick silicon resin or graphite coating

Dimensions: it is made according the drawing orsamples.
Thickness: 1.0~3.0mm
