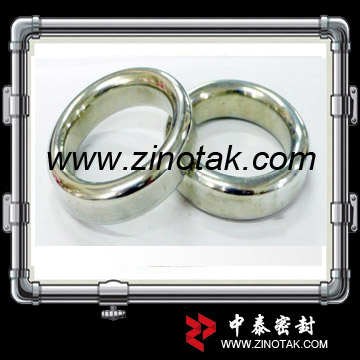

Name: Oval Ring Joint Gasket (ZT-G801)
The ring type joint was initially developed for high pressure and temperature applications found in the petroleum
industry and is primarily used in the oil field on drilling and completion equipments. However, today this product
range can also be found on valves and pipework assemblies, along with some high integrity pressure vessel joints.
>> more detail
|
| |
| |
|

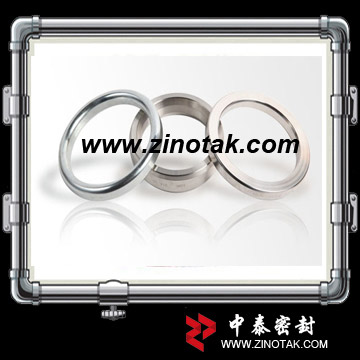

Name: Octagonal Ring Joint Gasket (ZT-G802)
The ring type joint was initially developed for high pressure and temperature applications found in the petroleum industry and is primarily used in the oil field on drilling and completion equipments. However, today this product range can also be found on valves and pipework assemblies, along with some high integrity pressure vessel joints.
>> more detail
|
| |
| |
|

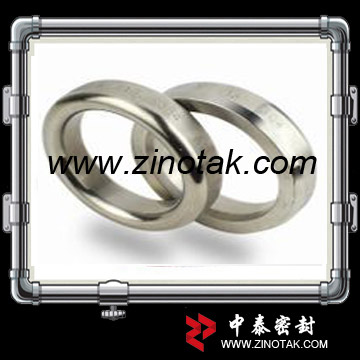

Name: RX Ring Joint Gasket (ZT-G803)
The style RX is an adaptation of the standard style R which energizes on assembly. The RX is designed to fit the same groove design as a standard style R, making the joints interchangeable.Consideration should be given to the difference in finished make-up distance.The modified design uses an energizing on assembly effect with improves the efficiency of the seal.
>> more detail
|
| |
| |
|
Name: BX Ring Joint Gasket (ZT-G804)
The type BX energized ring type joints, manufactured in accordance with API 6A, are designed for use on pressurized systems up to 20,000 psi.When correctly fitted, the type BX gasket allows virtual face to face contact of the flange faces which means that the gasket in fully trapped on both the inner and outer diameters.All BX gasket incorporate a pressure balance hole to ensure equalization of pressure which may be trapped in the grooves.
>> more detail
|
| |
| |
|
|
|
|
|
